Magic Box® Linear® Domotika is the counterframe for flush sliding doors prepared for electrical and water utilities. The Problem Solver.

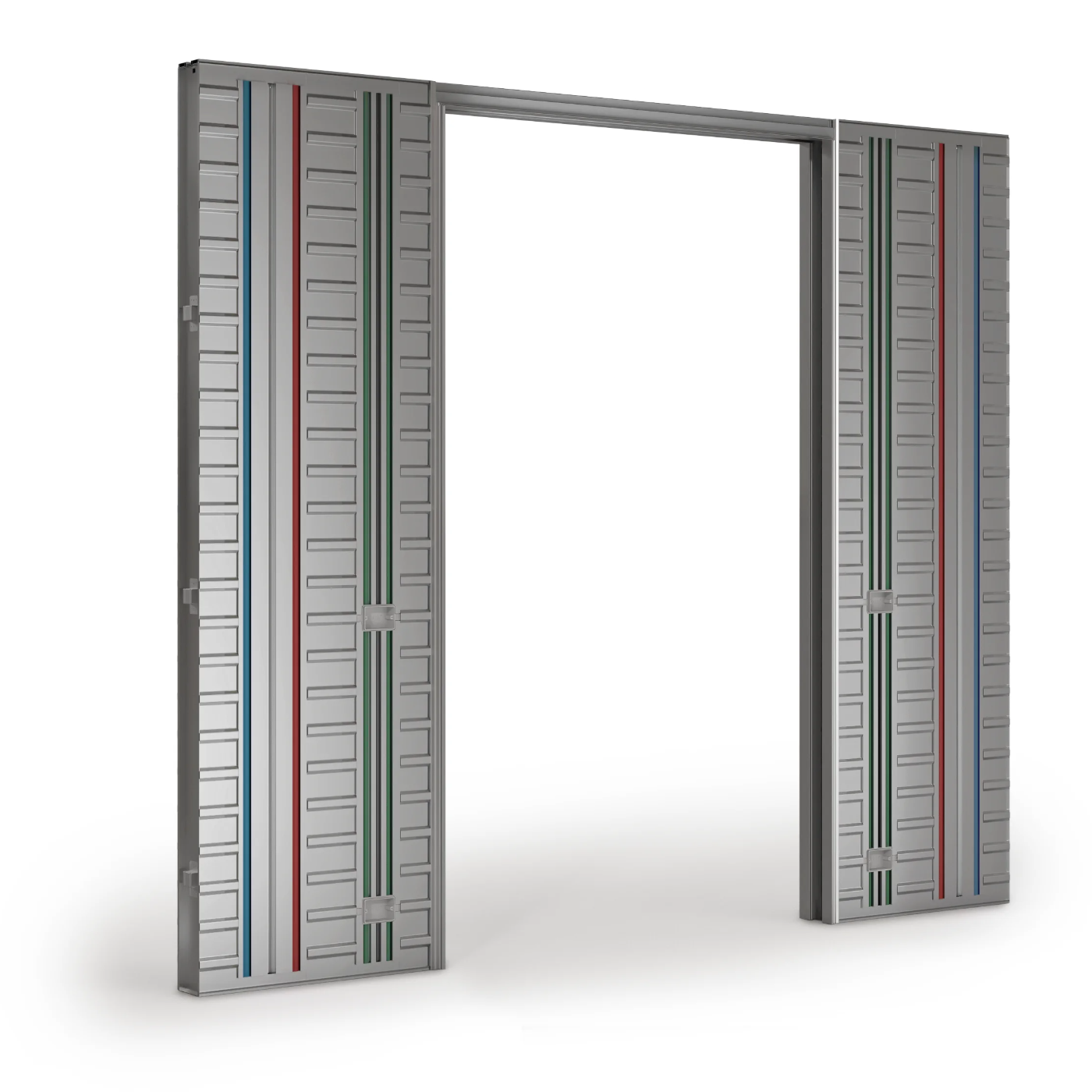

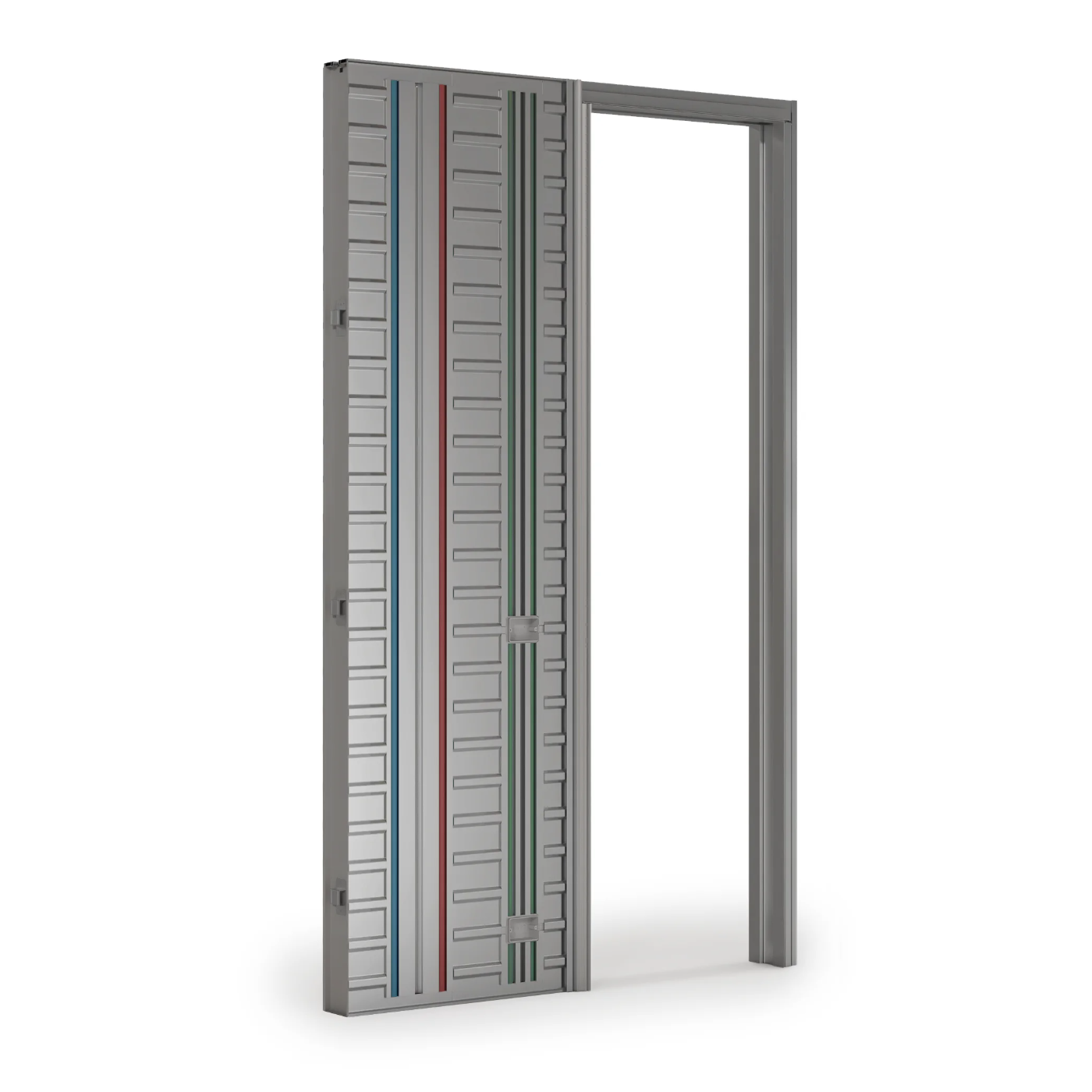

Available in both single and double versions.
Domotika allows the use of a sliding door where the passage of electrical and water systems would not allow its use.
A special double mold made of expanded polystyrene, present on both sides of the subframe, contains the passage for the connections of electrical and water systems. Fruit boxes can be installed every 10 cm in height, thanks to the reinforcing ribs that run horizontally at the same pitch.
Available for wooden or glass doors up to 240 cm wide - in the double version - and 3 meters high.
type of opening
Guaranteed 25 years. Because we believe in what we do. We Build Quality.
The entire Magic Box® Collection has numerous technical values that testify to our ability to make high-quality products. These features, in their entirety, are designed to simplify and speed up installation and to ensure a product that will last.
Among the most important ones include:
Variable hardness element, which can be installed inside the rail, allowing to limit the maximum opening of the door panel. Applicable when the counterframe is installed, thanks to the removable track.
The kit includes a bottom rail made of aluminum to facilitate panel sliding, up to 120 cm in length. Screws for fixing included. Needs modifications to the bottom milling of the panel.
The system allows the door to be completely recessed inside the wall. By pushing with slight pressure, the door is pushed out of the wall so that it can be closed. Can be applied with the counterframe installed, thanks to the pull-out track. Not compatible with simultaneous opening kit. Not compatible with self-closing kit.
Available in three lengths: 215 cm, 245 cm, 275 cm. Available in three colors: white, black and gray.
Mechanical system (invisible from the outside) that allows simultaneous opening and closing of two door panels, installed on Linear® Double counterframes, by moving a single door leaf.
Pneumatic system-invisible from the outside-that automatically closes the Linear® sliding door once it has been opened; allows both keeping the door fully open and adjusting the closing speed. Kit includes pneumatic piston, support with pulley, drive bracket, magnet and steel cable. Hardware included. Can be applied with the counterframe installed, thanks to the pull-out track. Available for doors up to 40 kg weight and 100 cm opening. Use of the system on doors subject to specified regulations should be verified by the customer in accordance with national laws.
Allows the panel to be slowed down when closing, thanks to damping systems complete with special sliding brackets. Available in different versions for door panels of 40, 50 or > 80 kg, and in the bi-directional variant for door panels of 40 kg. Can also be applied to already installed counterframe, thanks to the pull-out guide. Also applicable to glass door panels. Can also be applied to counterframes with jambs and casings. Required verification of compatibility with door panel dimensions.
Kit includes the monopinza for 10 mm glass thickness (maximum length 120 cm), specific drawbar, extra stop on opening, anodized aluminum interlocking element for glass doors complete with gaskets and clearance reduction kit, plugs, aluminum covers, trolley fixing brackets and bottom rail. Screws and hardware for fastening included. Glass does not require machining or drilling. Maximum capacity of the clamps 100 kg. Includes specific tiller and extra stop on opening. Profiles will need to be adjusted to the clearance by cutting. Trolley kit not included.
Kit that reduces the size of the Linear® subframe inlet for installing glass doors without having to give up the use of dust brushes. Made of anodized extruded aluminum. Applicable when the counterframe is installed. Recommended for the installation of glass doors.
Available in three lengths: 215 cm, 245 cm, 275 cm. Available in three colors: white, black and gray.
The 150 kg trolley kit consists of 2 ambidextrous self-centering trolleys, each equipped with 4 coated ball bearings, 2 wedges and 2 "C" brackets for door panel fastening, self-centering and interlocking drawbar, adjustable bumper rubber grommet, variable hardness trolley stop in rail closure, and trolley cap in two colors: white and black. The kit also includes hardware, dowels and fasteners for fixing. Suitable for wooden door panels.
Three-module electrical box 40 mm thick. Screws for fixing included. Multiple electrical boxes can be installed on the same side of the subframe, one every 10 cm.
Variable hardness element, which can be installed inside the rail, allowing the maximum opening of the door panel to be limited.
Can be applied with the counterframe installed, thanks to the pull-out track.
The kit includes a bottom rail made of aluminum to facilitate panel sliding, up to 120 cm in length. Screws for fixing included.
Needs modifications to the lower milling of the panel.
The system allows the door to be completely recessed inside the wall. By pushing with slight pressure, the door is pushed out of the wall so that it can be closed.
Can be applied with the counterframe installed, thanks to the pull-out track.
Not compatible with simultaneous opening kit.
Not compatible with self-closing kit.
Available in three lengths: 215 cm, 245 cm, 275 cm.
Available in three colors: white, black and gray.
Mechanical system (invisible from the outside) that allows simultaneous opening and closing of two door panels, installed on Linear® Double counterframes, by moving a single door leaf.
Pneumatic system-invisible from the outside-that automatically closes the Linear® sliding door once it has been opened; allows both keeping the door fully open and adjusting the closing speed.
Kit includes a pneumatic piston, support with pulley, drag bracket, magnet and steel cable. Hardware included.
Can be applied with the counterframe installed, thanks to the pull-out track.
Available for doors up to 40 kg weight and 100 cm opening.
Use of the system on doors subject to specified regulations should be verified by the customer in accordance with national laws.
Allows the panel to be slowed down when closing, thanks to shock absorber systems complete with special sliding brackets.
Available in different versions for door panels of 40, 50 or > 80 kg, and in the bi-directional variant for 40 kg door panels.
Can also be applied to already installed subframe, thanks to the pull-out guide.
Also applicable to glass door panels.
It can also be applied to counterframes with jambs and casing covers.
Need to check compatibility with door panel dimensions.
Kit includes monopinch for 10 mm glass thickness (max. length 120 cm), specific drawbar, extra stop on opening, anodized aluminum interlocking element for glass doors complete with gaskets and clearance reduction kit, plugs, aluminum covers, trolley fixing brackets and bottom rail. Screws and hardware for fixing included.
The glass does not require machining or drilling.
Maximum capacity of the clamps 100 kg.
Includes specific rudder and extra catch in opening.
The profiles should be adjusted to the passage span by cutting.
Trolley kit not included.
Kit that reduces the size of the Linear® subframe inlet for installing glass doors without having to give up the use of dust brushes. Made of anodized extruded aluminum.
Applicable when the counterframe is installed.
Recommended for installation of glass doors.
Available in three lengths: 215 cm, 245 cm, 275 cm.
Available in three colors: white, black and gray.
The 150 kg trolley kit consists of 2 ambidextrous self-centering trolleys, each equipped with 4 coated ball bearings, 2 wedges and 2 "C" brackets for door panel fastening, self-centering and interlocking drawbar, adjustable bumper rubber grommet, variable hardness trolley stop in guide closure, and trolley cap in two colors: white and black.
The kit also includes hardware, dowels and bolts for fastening.
Suitable for wooden door panels.
Three-module electrical box 40 mm thick. Screws for fixing included.
It is possible to install multiple electrical boxes on the same side of the subframe, one every 10 cm.
Handle for sliding glass doors. Available in matte aluminum with metallic bottom.
Square handle with drag lever. Available with keyhole or pawl lock. Available in polished brass, polished chrome and satin chrome.
Square handle kit with drag handle for sliding door. Available in polished brass, polished chrome and satin chrome.
Technical Drawing
Square handle kit with drag handle and keyhole lock for sliding door. Available in polished brass, polished chrome and satin chrome.
Technical Drawing
Square handle kit with drag handle and pawl lock for sliding door. Available in polished brass, polished chrome and satin chrome.
Technical Drawing
Round handle with drag lever. Available with keyhole or pawl lock. Available in polished brass, polished chrome and satin chrome.
Round handle kit with drag handle for sliding door. Available in polished brass, polished chrome and satin chrome.
Technical Drawing
Round handle kit with drag handle and keyhole lock for sliding door. Available in polished brass, polished chrome and satin chrome.
Technical Drawing
Round handle kit with drag handle and pawl lock for sliding door. Available in polished brass, polished chrome and satin chrome.
Technical Drawing
Vertical anodized aluminum handle for sliding door. Available in satin anthracite, satin silver, satin bronze, satin pewter and white.
Front cover plate with drag lever. Available for sliding doors. Available in matte chrome. For other finishes please contact the company.
For sliding doors. Available in matte chrome. For other finishes contact the company.
Lock with drag lever for keyhole, pawl or European cylinder. Available for sliding doors. Available in matte chrome. For other finishes contact the company.
Front cover plate for sliding door. Available in matte aluminum with metallic bottom.
Front cover plate with drag lever. Available for sliding doors. Available in matte chrome. For other finishes contact the company.
Lock with drag lever for keyhole, pawl or European cylinder. Available for sliding doors. Available in matte chrome. For other finishes contact the company.
Front cover plate for sliding door.
Available in matte aluminum with a metallic background.
Front cover plate with drag lever. Available for sliding doors.
Available in matte chrome. For other finishes contact the company.
Lock with drag lever for keyhole, pawl or European cylinder. Available for sliding doors.
Available in matte chrome. For other finishes contact the company.
