Magic Box® Hydra is the pocket frame for sliding doors with jambs prepared for plumbing fittings. The Problem Solver.

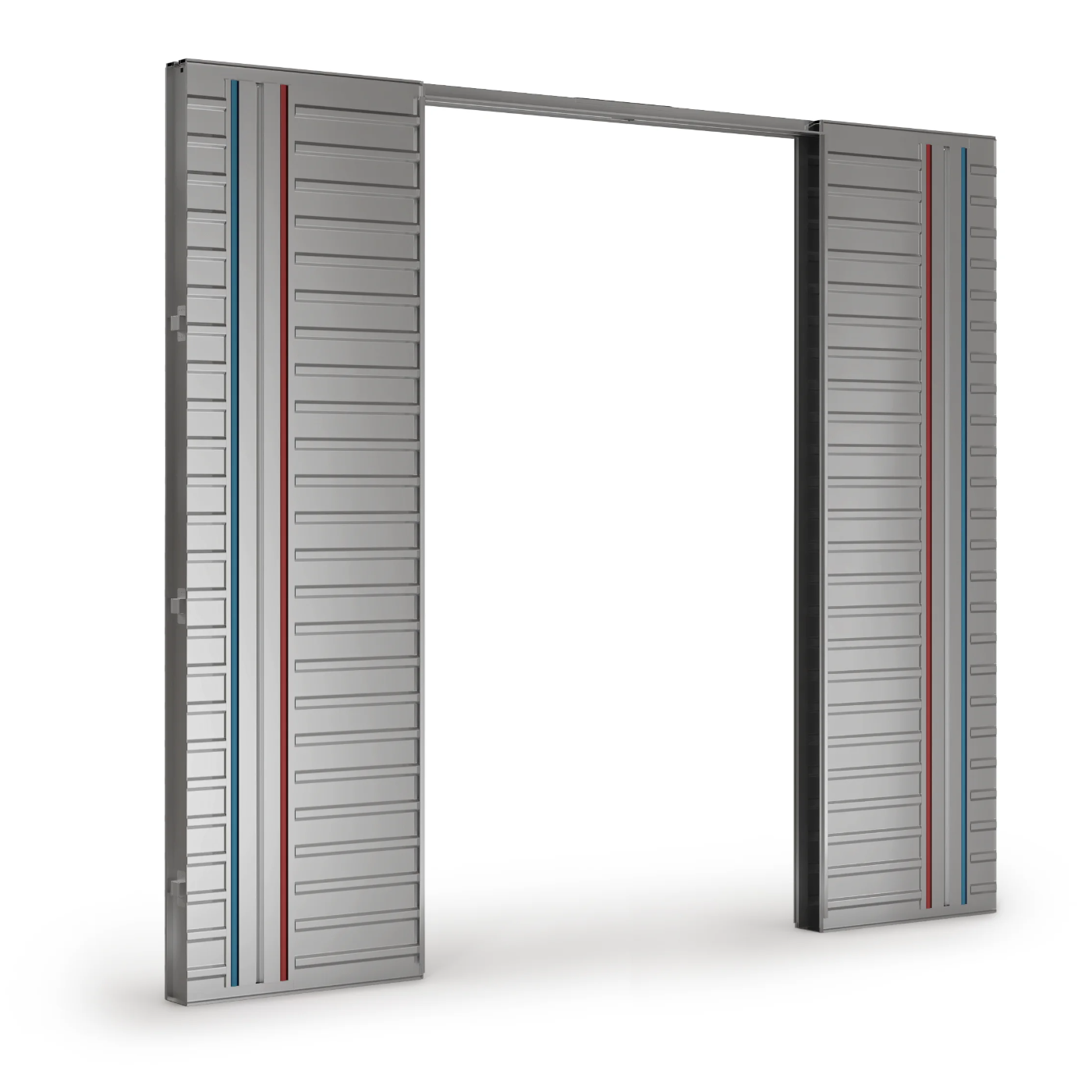

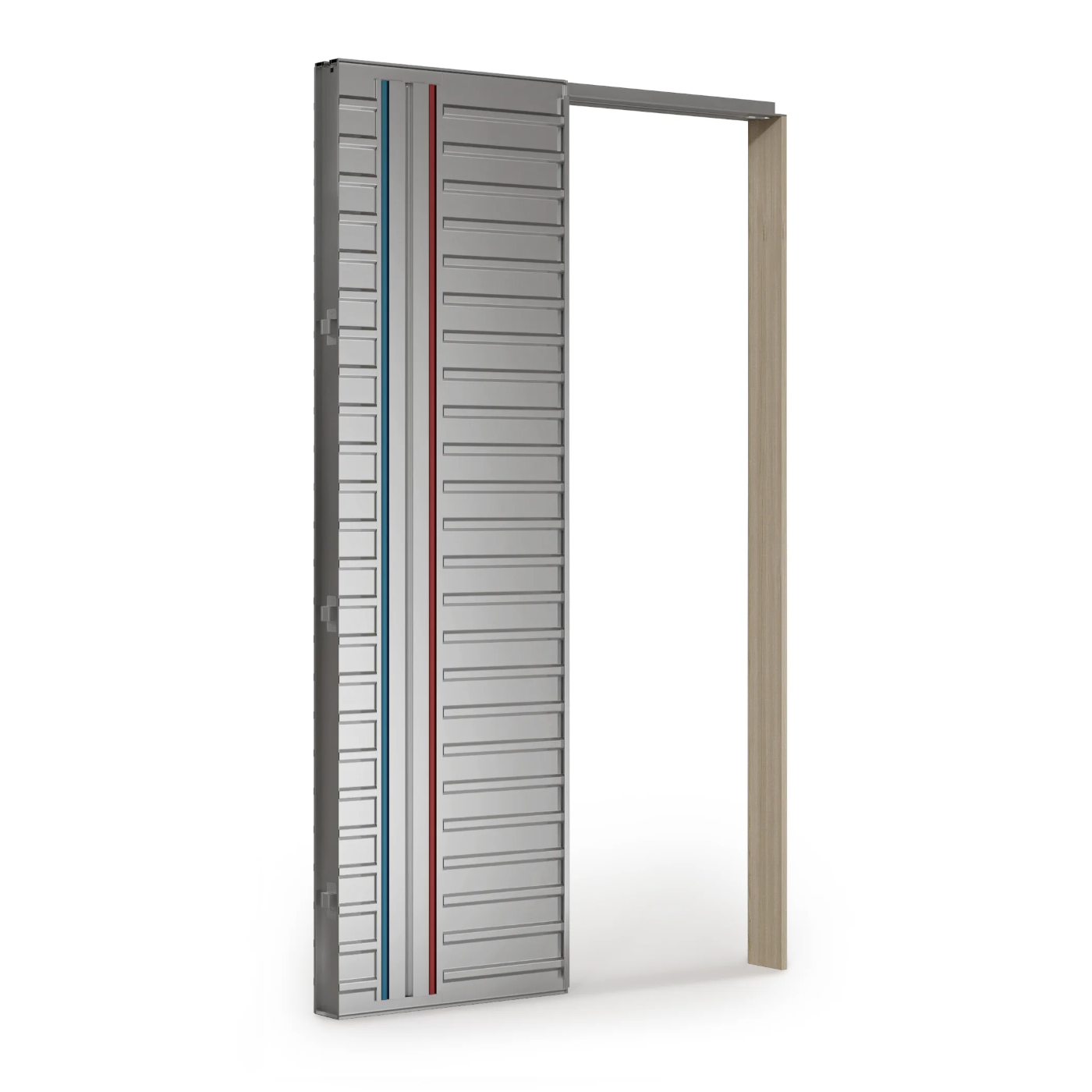

Available in both single and double versions.
Hydra lets you have a sliding door where plumbing lines would otherwise make it impossible.
A special expanded polystyrene mould on both sides of the pocket frame houses the routing for plumbing connections, with room for up to 3 water pipes per side.
Available for wooden or glass doors up to 240 cm wide – in the double version – and 3 metres high.
Pocket frame with jambs prepared for plumbing.
Expanded polystyrene mould for routing up to 3 water pipes per side.
150 kg standard load capacity with four-bearing trolley.
Patented screwless self-centring connecting bar: no drilling of the floor.
Available in single or double version, for wooden or glass doors.
Hydra
Access the moodboards and finishes to explore colour palettes, wood species and textures selected with design rigour. Solutions designed to fit with architectural languages, enhance construction details and support the vision of the project.
Discover
Square handle with pull lever.
Round handle with pull lever.
Vertical handle in anodised aluminium.
Handle for sliding glass doors.
Front cover plate for sliding doors. Available in matt aluminium with metallic base.
Lock with pull lever for keyhole, thumb turn or European cylinder. Available for sliding doors. Available in matt chrome. For other finishes, contact the company.
Front cover plate with pull lever. Available for sliding doors. Available in matt chrome. For other finishes, contact the company.
The 150 kg trolley kit consists of 2 self-centring ambidextrous trolleys, each with 4 coated ball bearings, a self-centring snap-in connecting bar, door…
The top element (crosspiece) fits doors with openings up to 100 cm. The vertical element (upright) fits doors up to 210 cm high.…
Lifty System® is Protek’s exclusive patented system that allows the door to be adjusted and fitted more quickly, with no need for hand tools at all. Fixing…
The kit includes crosspieces, upright and posts for a structural opening up to 200 cm (100 + 100) wide and 210 cm high, to…
The kit includes 2 adjustable clamps for 8-10-12 mm glass and a bottom guide. Fixing screws and bolts included. Maximum clamp capacity 80 kg; requires…
The kit includes crosspieces, upright and posts for a structural opening up to 100 cm wide and 210 cm high, to be cut to size.…
The kit includes 2 adjustable clamps for 8-10 mm glass and a bottom guide. Fixing screws and bolts included. The glass requires no machining or drilling.…
The kit includes the single clamp for 10 mm glass (maximum length 1200 mm), end caps, aluminium covers, trolley fixing brackets and bottom guide. Fixing…
Accessory for creating a double pocket frame by joining two single ones, suitable for both plasterboard and plaster versions. To join two single pocket…
Pneumatic system – invisible from the outside – that automatically closes the sliding door once opened; it lets you keep the door fully open and…
The kit includes an aluminium bottom guide to help the panel slide, up to 120 cm long. Fixing screws included.…
The system lets the door slide completely into the wall. A light push brings the door out of the wall so it can be closed. Can be fitted to an installed…
The kit includes a 40, 50 or 80 kg damper and coupling system. Screws and bolts included. All soft-close kits can be installed inside the track…
Variable-hardness element, installed inside the track, that limits the maximum opening of the door panel. Can be fitted to an installed pocket frame, thanks to the removable track.
The kit includes two pulleys with fixing elements, steel cable, cable tensioning brackets and cable clamps. Screws, bolts and hex key for fixing included. Available up to…
Can be fitted to an installed pocket frame.
We recommend combining it with the bottom draught excluder and acoustic seals.
Machining of the door panel at the customer’s expense.
Can be fitted to an installed pocket frame. Special sliding connecting bar, front end cap and magnets to hold the panel closed included in the kit . We…
Can be fitted to an installed pocket frame. Also available in black. We recommend combining it with the top and bottom draught excluders and a soundproof door panel with specific machining.
The integrated motorisation kit is invisible from the outside and automates the movement of the door panels. It includes: a 24V gear motor with support, a 230Vac/24Vdc…
